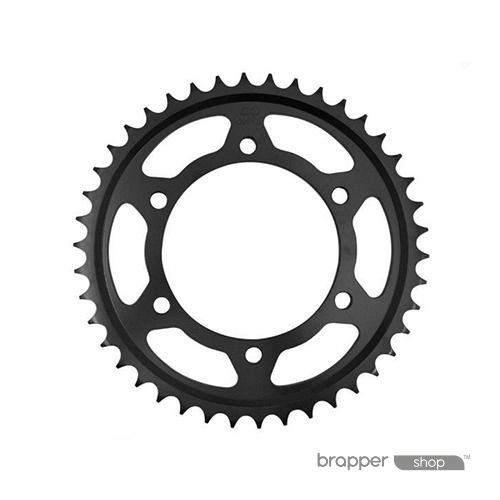

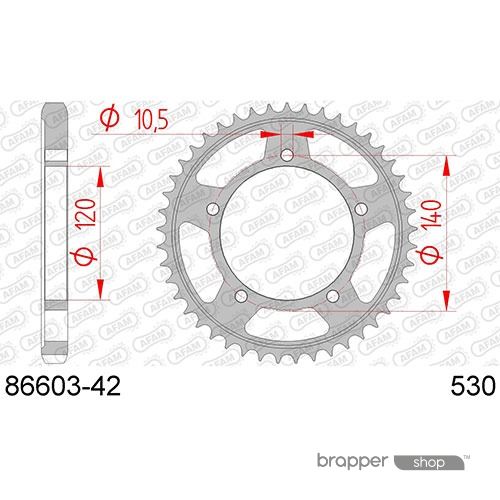

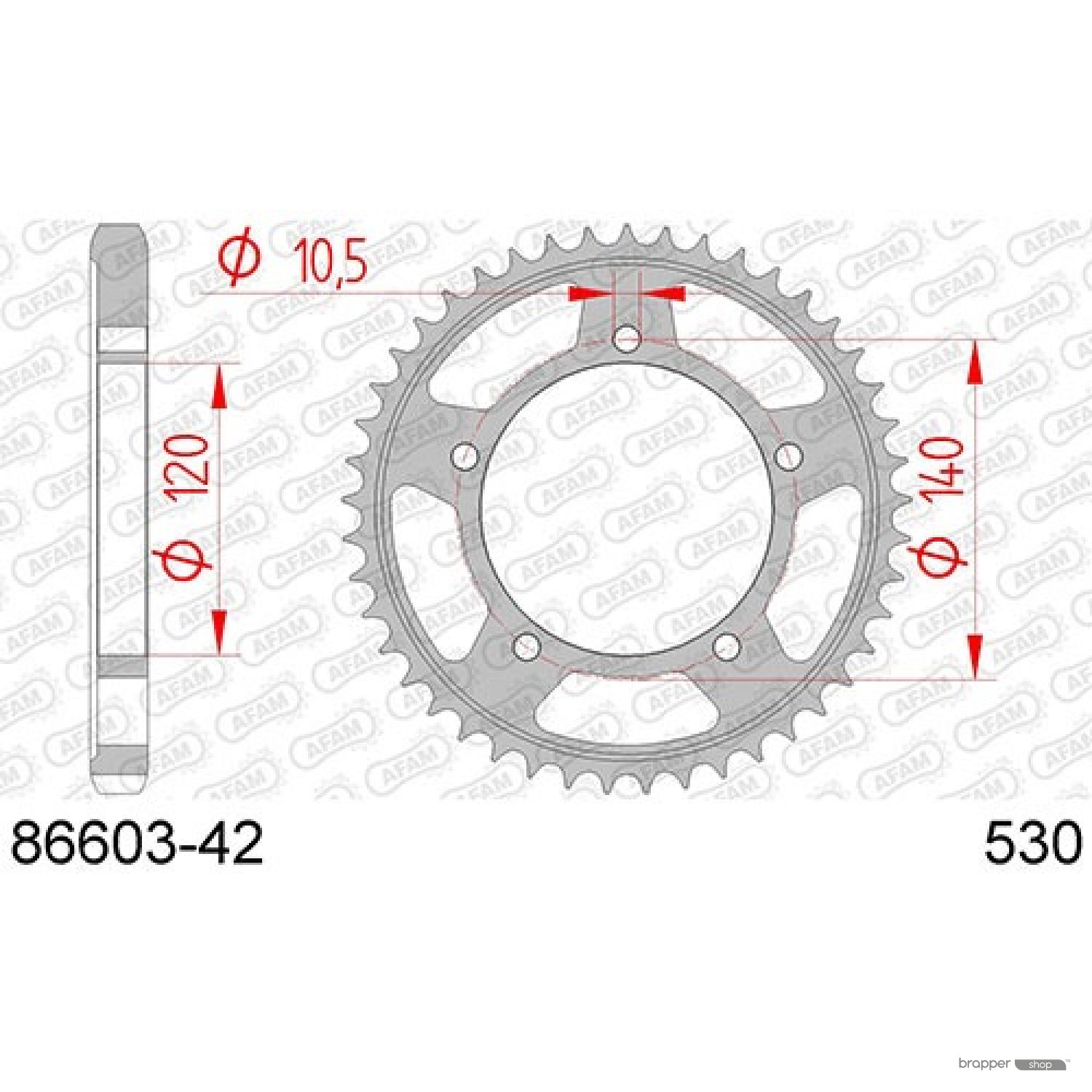

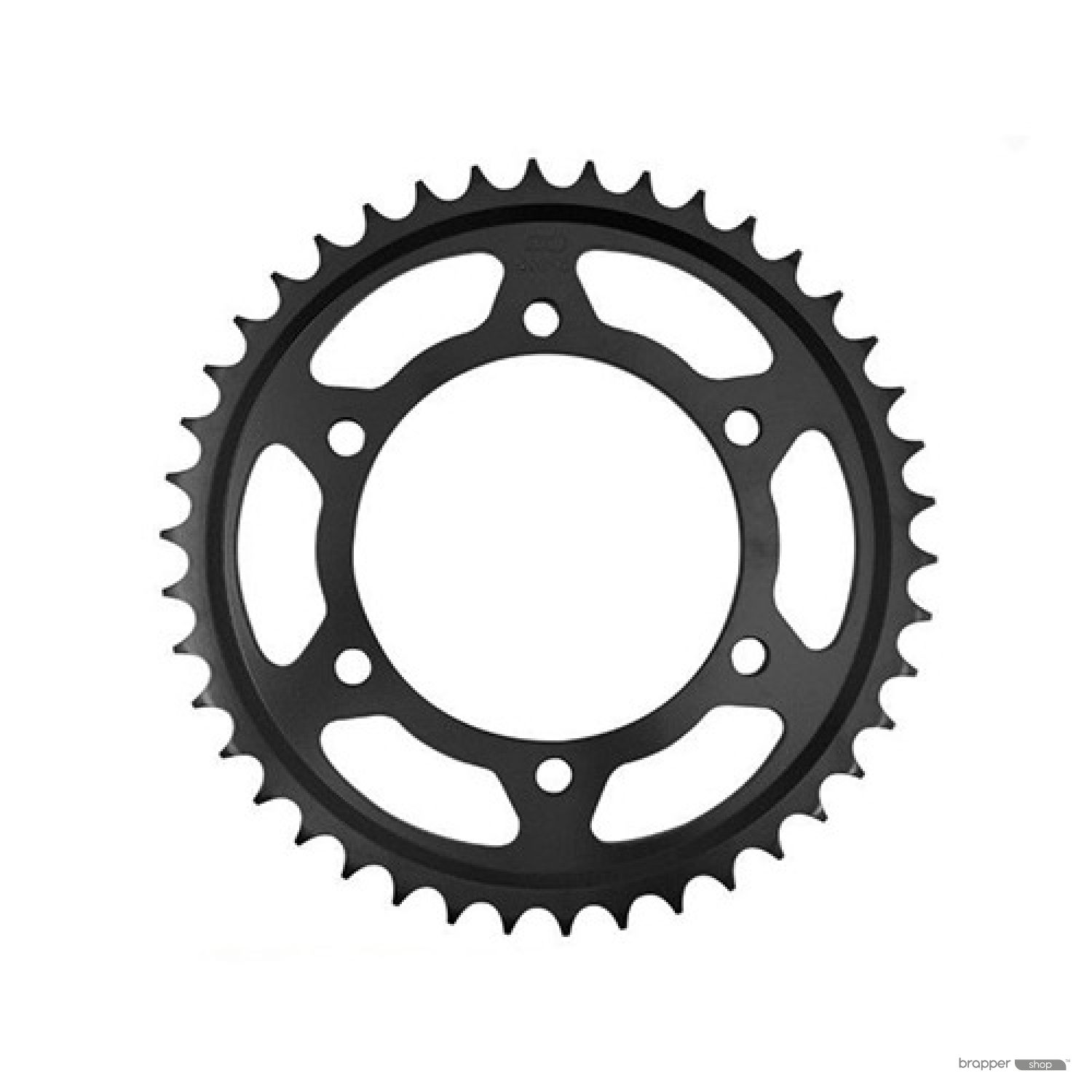

Rear Steel Sprocket AFAM #530 86603-42

Brand: AFAM
Sprocket Position
Sprocket Size
Sprocket Teeth
  • Ship Only


Chain pitch : 530
Material : Steel
Position : Rear
Sprocket teeth : 42
Sprocket type : 86603-42
Sprocket version : Standard


Rear Steel Sprocket AFAM #530 86603-42


Rear sprockets are essentially two types: Steel and aluminum.

Every sprocket is made on precision, computer-controlled equipment. The teeth are machined to the latest standards, for maximum chain life and more efficient power transmission. The teeth and the outside diameter are cut at the same time. This makes sure the teeth are concentric to the sprocket center.

Steel: ideal replacement of the OEM part, where quality is not better is the same as the original.

Every sprocket is heat-treated through an induction hardening then tempered to produce exactly the correct hardness for durability and efficient power delivery. To correct any distortion that may have occurred during these stages, the sprockets are put through a special flattening machine. For corrosion resistance, the steel sprockets are bright zinc plated.

Aluminum: the max for those who want to light final transmission or have onboard an accessory that expert riders have.



  • STEEL REAR SPROCKETS All AFAM steel rear sprockets are manufactured in C45N steel and the teeth are induction hardened. This combination coupled with a high-quality chain guarantees high mileage. Perfectly round, flat, and concentric, possessing the unique  AFAM tooth profile makes it the best after-market sprocket available.
  • RLK Steel Rear Racing Sprocket Very resistant steel rear racing sprocket, with maximum weight reduction for extreme use, machined with fourth-generation    "RACING” design.



  • Aluminum Rear Sprockets are all manufactured in aluminum 7075 with T6 surface hardening. Precise tolerances combined with the AFAM tooth profile are the secrets for this high-quality product.
  • Racing Type Aluminum Sprockets have hard anodizing to improve their durability. Hard anodizing gives a robust layer of extra hardness that is one of the keys to its outstanding durability.



  • Standard Motocross Aluminum Sprockets have the computer-aided ‘snowflake’ design to reduce unsprung weight while retaining high strength, silver anodized aluminum.
  • Motocross Self-Cleaning Aluminum 3D design relief Sprockets are colored and hard anodized and have mud grooves to evacuate quicker mud and sand to avoid over the tension of your chain. They are hard anodized for higher durability and have a weight gain with the ‘snowflake’ 2nd generation design.
  • SLK Self-cleaning Steel Sprocket Very resistant Off-road steel rear sprocket, with maximum weight reduction for extreme use, machined with fourth-generation "T4” design.



  • SUZUKI GSX-R 1000(2001-2002)
